Strain Field Generator

Efficient and accurate analysis of composite structures without through-the-thickness discretization.

About

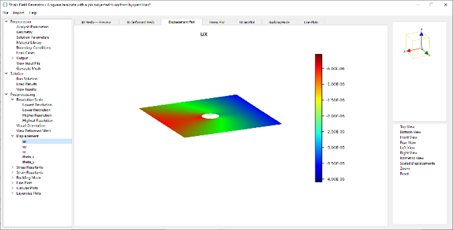

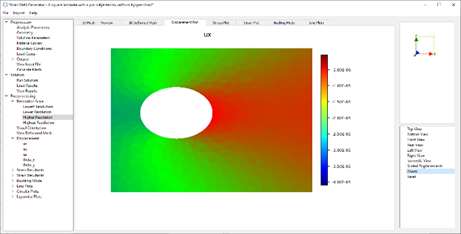

Strain Field Generator, written in Python and FORTRAN, is an advanced analysis tool to determine displacement fields, stress and strain fields, as well as buckling modes in composite laminates. It is an extended version of C-BOLT for simple cases that includes in-plane as well as Mindlin type shear deformable bending of laminated plates.

Contact Us
Your Image

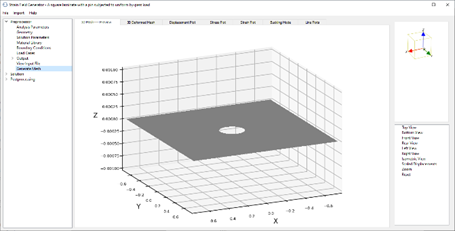

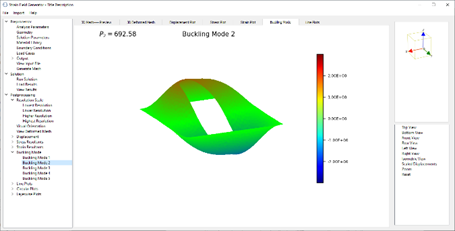

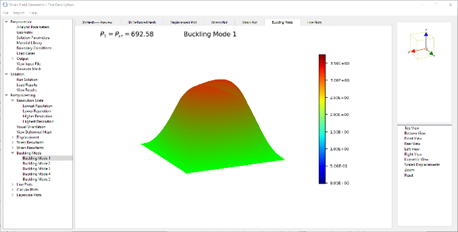

In Strain Field Generator (SFG), the laminate may have an elliptical cutout at any arbitrary orientation from the laminate’s horizontal axis. The laminate may be subjected to mechanical, thermal, and bearing loads. It enables fast and accurate stress analysis of a laminate with a hole, pin loaded hole and a filler hole, and buckling analysis of the given laminate with hole and a filler hole.

Your Image
Your Image
Your Image
Your Image

All Products

Peridynamic Processor

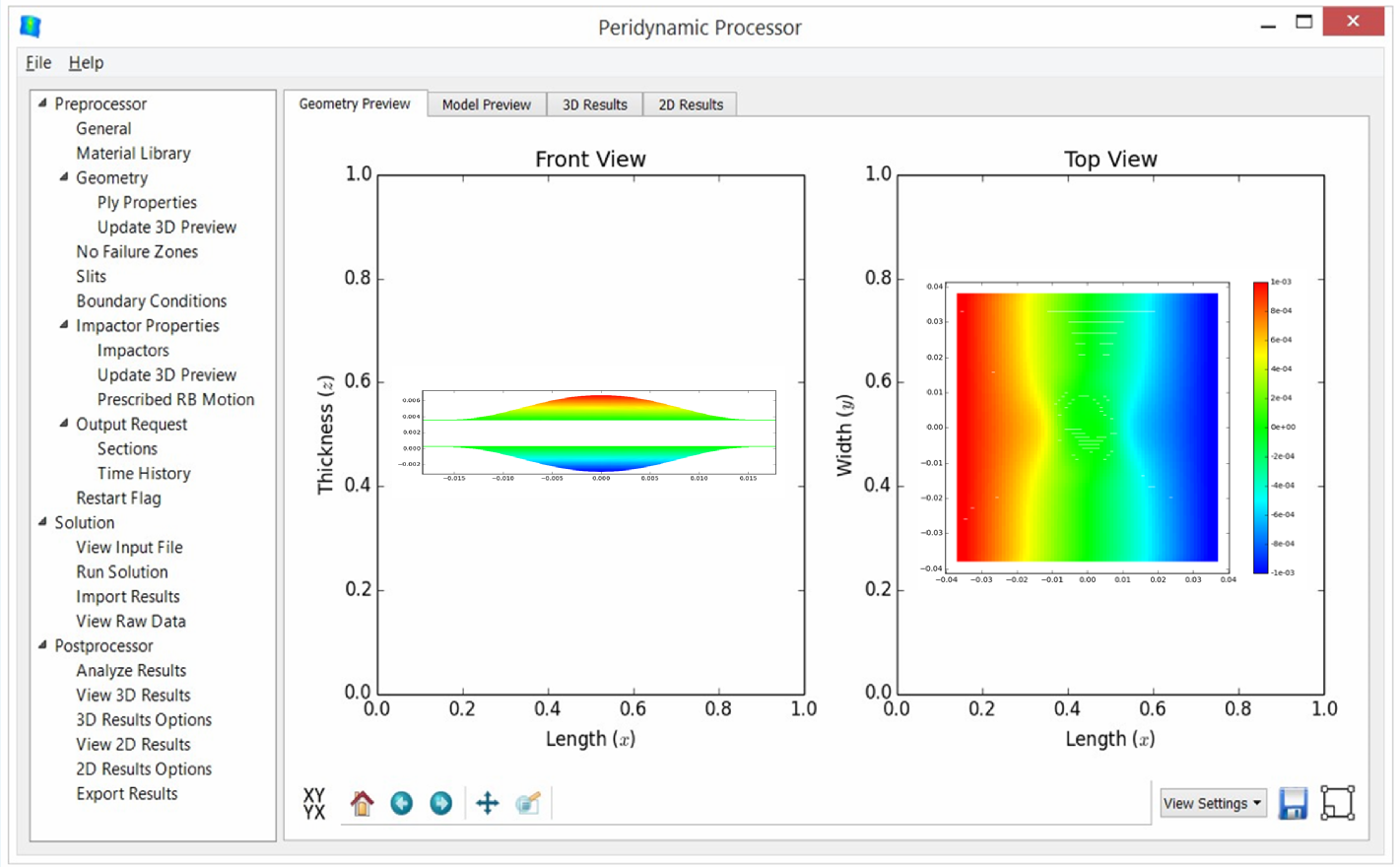

The Peridynamic Processor (PDP) is a peridynamics based innovative tool to analyze progressive damage in composite materials.

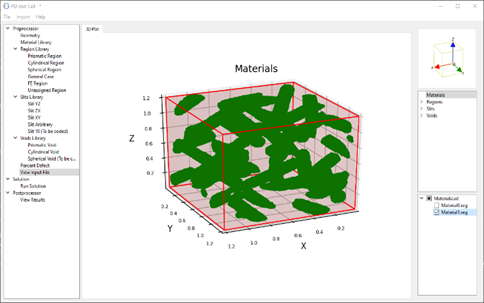

Peridynamic Unit Cell
Peridynamics Unit Cell, written in Python and C++, is a homogenization tool for predicting effective thermoelastic properties of micro-structures.

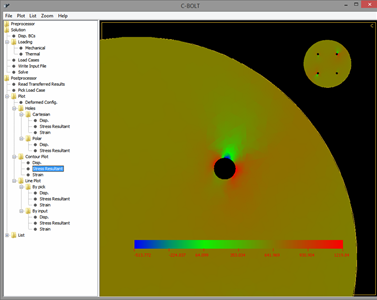

Composite Bolted Joint Analysis
Composite Bolted Joint Analysis Tools (C-BOLT) is a state-of-the-art analysis tool, written in JAVA and FORTRAN, to perform contact analysis of a bolted joint configuration.
Strain Field Generator
Strain Field Generator (SFG), written in Python and FORTRAN, is an advanced analysis tool to determine displacement fields, stress and strain fields, as well as buckling modes in composite laminates.

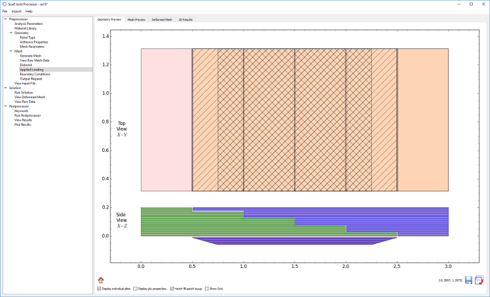

Scarf Joint Processor
Scarf Joint Processor (SJP) is a python and FORTRAN based advanced tool designed to run the Comprehensive Scarf Repair Analysis (CSR) program.
